Airmar weather station is the perfect choice for professionals who need reliable, real-time weather measurements while on the move, such as Firefighters, Civil Defense, Fire brigade, Hazardous Materials Control, Chemical Spraying, and Marine and Offshore Operations, among others.

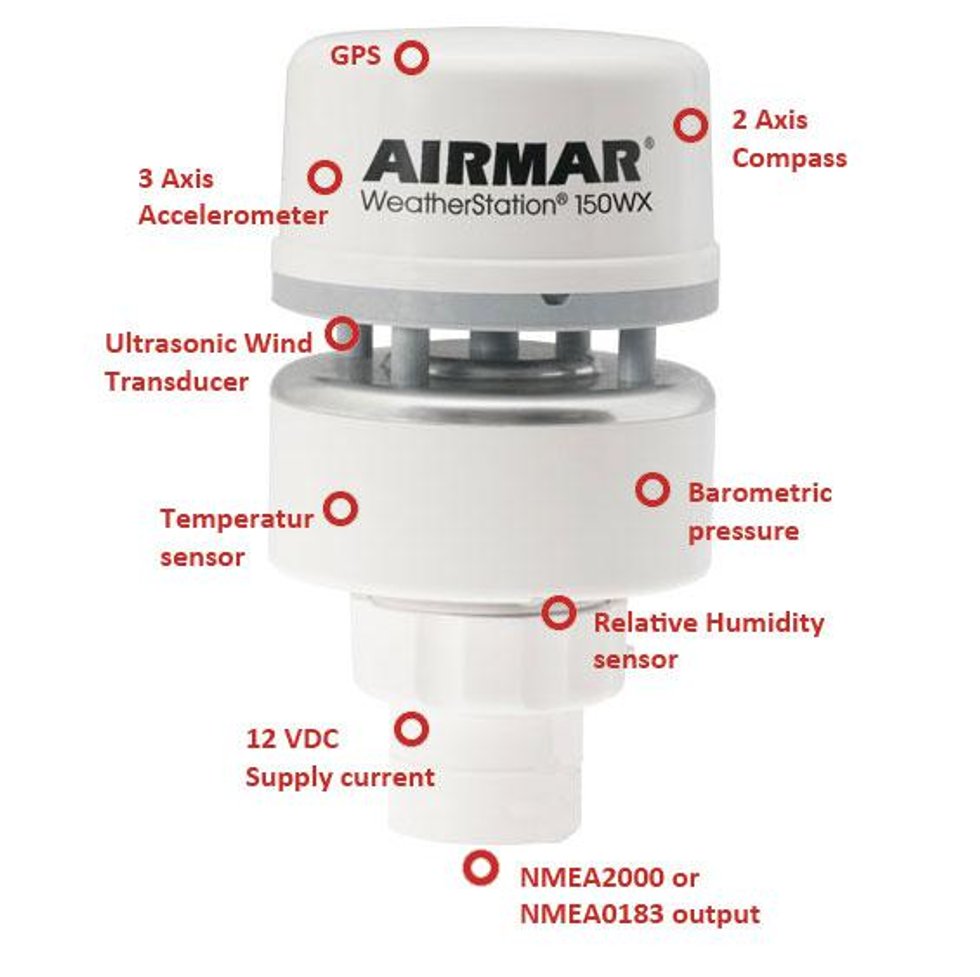

Airmar is the only station with no moving parts, and integrated sensors with GPS, which provides direction and real and apparent wind speed, barometric pressure, air temperature, relative humidity, dew point, and wind chill. The manufacturing material is UV-protected, fully waterproof, and chemical resistant. For more information about weather instruments visit Weather Scientific.
Airmar station is wired and comes with WeatherCaster software, which allows data visualization and storage. The station does not have a display (console) and therefore needs a computer for viewing.
The following equipment is connected to the weather station:
- Satellite communication station IDP690
- Source of power
- Cable set
Airmar has developed and operates an automatic complex for collecting meteorological information (hereinafter Airmar).
Airmar is intended for automatic (i.e. without involving the ship's personnel) collection of the meteorological situation in the area of navigation of the ship, according to the instructions (guides) of the World Meteorological Organization (WMO) and Roshydromet and data transmission via the Inmarsat IsatData Pro satellite network. The subscriber device is based on the SkyWave IDP-690 satellite communication station and AIRMAR PB-200 automatic weather station.
PARAMETERS:
- Actual and apparent wind speed
- Actual and apparent wind direction
- Air temperature
- Relative humidity
- Dew point
- Thermal sensation
- Barometric pressure
- Global Positioning System - GPS
- Compass
- Position relative to true north
SPECIFICATIONS:
- 1.Wind speed
- Range: 0 to 40 m/s
- Resolution: 0.1 m/s
- Accuracy: between 0°C and 55°C: +/- 0.5 m/s or +/- 4%, whichever is greater. Below 0°C, accuracy may decrease.
- 2.Wind direction
- Range: 0 to 360°
- Resolution: 0.1°
- Accuracy: +/- 1.5°. Below 0°, accuracy may decrease
- 3.Temperature
- Range: -40° to +55°C
- Resolution: 0.1°C
- Accuracy: +/- 1°C when wind speed > 2 m/s
- 4.Compass
- Accuracy: 1st standing; 2nd in motion
- 5.Barometric pressure
- Range: 300 mbar to 1100 mbar
- Resolution: 0.1 mbar
- Accuracy: +/- 1.5%
- 6.Relative humidity
- Range: 10 to 95% RH
- Accuracy: +/- 4%
- 7.Power supply voltage: 9VDC to 40VDC
- 8.Power consumption: < 100 mA under normal conditions
- 9.Dimensions
- Height: 13.1 cm
- Diameter: 7.2 cm
- 10. Minimal computer configuration
- Compatible Operating Systems: Windows NT 4.0+, 2000, XP, Vista, Windows 7, Windows 10, Windows 100
- Processor: Pentium 1GHz or greater
- Hard Disk: 120 MB (plus 50 MB per year of stored data)
- CD drive
- keyboard and mouse
- USB port
