Summary

The performance of 35kV oil-immersed power transformer of the company conforms to or is superior to the requirements of GB1094 Power Transformers and GB/T6451 Specification and Technical Requirements for Three-phase Oil Immersed Power Transformers. Its core is made of high-grade superior cold-rolled silicon steel sheet, and the coil conductor adopts high-quality oxygen-free copper, with beautiful appearance and compact structure.

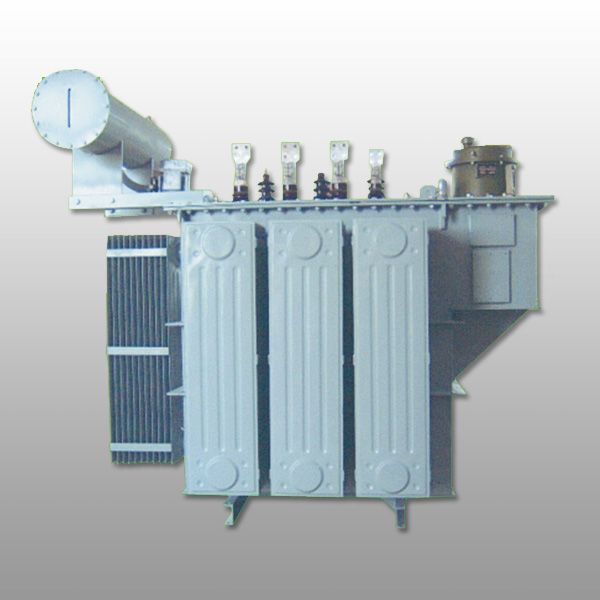

Power Distribution Transformer Oil Immersed Type Transformer

Production:

1. Brief Description

The performance of 35kV

oil-immersed power transformer

of the company conforms to or is superior to the requirements of GB1094 Power Transformers and GB/T6451 Specification and Technical Requirements for Three-phase Oil Immersed Power Transformers. Its core is made of high-grade superior cold-rolled silicon steel sheet, and the coil conductor adopts high-quality oxygen-free copper, with beautiful appearance and compact structure.

2. Application Scope

The product applies to power, petrochemical, coal, building material, metallurgical and textile industries.

3. Model Description

model description

4. Standards

GB1094.1, GB1094.2, GB1094.3, GB1094.5

IEC 60076-1:2000, IEC 60076-2:1993, IEC 60076-3:2000, IEC 60076-5:2006,

GB/T 6451, etc

5. Normal Service Conditions

Height above sea level: Not greater than 1,000m;

Ambient temperature: Maximum temperature: +40ºC;

Maximum daily average temperature: +30ºC;

Maximum annual average temperature: +20ºC;

Minimum outdoor temperature: -25ºC;

Installation environment: ground acceleration caused by earthquake: ag<2m/s

6. Features

1. The product adopts four-stage stepping joint, thus greatly reducing the gap reluctance of joint, improving the magnetic property of whole core and lowering the core noise caused by magnetostriction.

2. The winding adopts the oil guiding structure, thus improving the heat dissipation effect of winding and increasing the overload capability of transformer.

3. The product adopts reliable and solid positioning, thus ensuring no displacement of transformer after long-distance transportation and long-time operation and no deformation of winding, and the product may be directly connected to the grid to be used, not suspending the core.

4. The core and clamp may be led out from separate bushing and grounded according to user's habits and requirements.

5. The sealing elements adopt formed parts, achieving good sealing effects.

6. The product features stable performance, high reliability, compact structure, beautiful appearance, energy-saving and consumption reduction.

Company Profile:

Yuebian Electric Co., LTD is a professional electrical manufacturer engaged in power transformer up to 35kv and other electrical equipment. For instance, amorphous alloy power transformer, dry-type transformer, oil-immersed transformer, with type, combined transformer substation, high and low voltage complete switchgear, rectifier transformer, electric furnace transformer, mining and other special purpose transformer. After nearly 10 years of development, Yuebian Electric has now become one of the major suppliers of Chinese state grid and southern power grid.

Yuebian electric is located in Yueqing City, Zhejiang Province. As the forefront of reform and opening up, Yueqing provides us convenient traffic conditions. Our Industrial park covers an area of 20000 square meters, and the annual design production capacity is almost 300 million dollars. The modern garden-like factory has several functions, for example production, technology development, staff living, learning and entertainment. Hereinto, production plant owns 2 spacious and bright body building, 11 workshops, and more than 260 sets of advanced production and testing instruments, which guarantee the high quality of our production; Perfect function design of the complex and the r&d center adopt ERP management system which provide an advanced platform for e-commerce, operations management, and the product innovation; At the same time, our quiet and graceful staff living area provides employees with a comfortable living environment which owns dine, entertainment, information, learning, and other functions

Currently, Yuebian electric has more than 30 senior engineering and technical talents, including 5 senior engineers. The strong technical force provide us with effective guarantee about product research and development. The company has got the certification of ISO9001:2008 quality management system.

If you are interested in our products, feel free to contact me!
